Installation manual

Lin-2-Can Adapter fo Steering wheel / Адаптер руля

0. Installation diagrams / Схемы монтажа
1. Installation part 1
2. Installation part 2
3. Installation part 3 encode
4. Installation part 4 stereo encode
5. Installation part 5 cruise control
6. Installation part 6 heated steering wheel



  ver 7.6

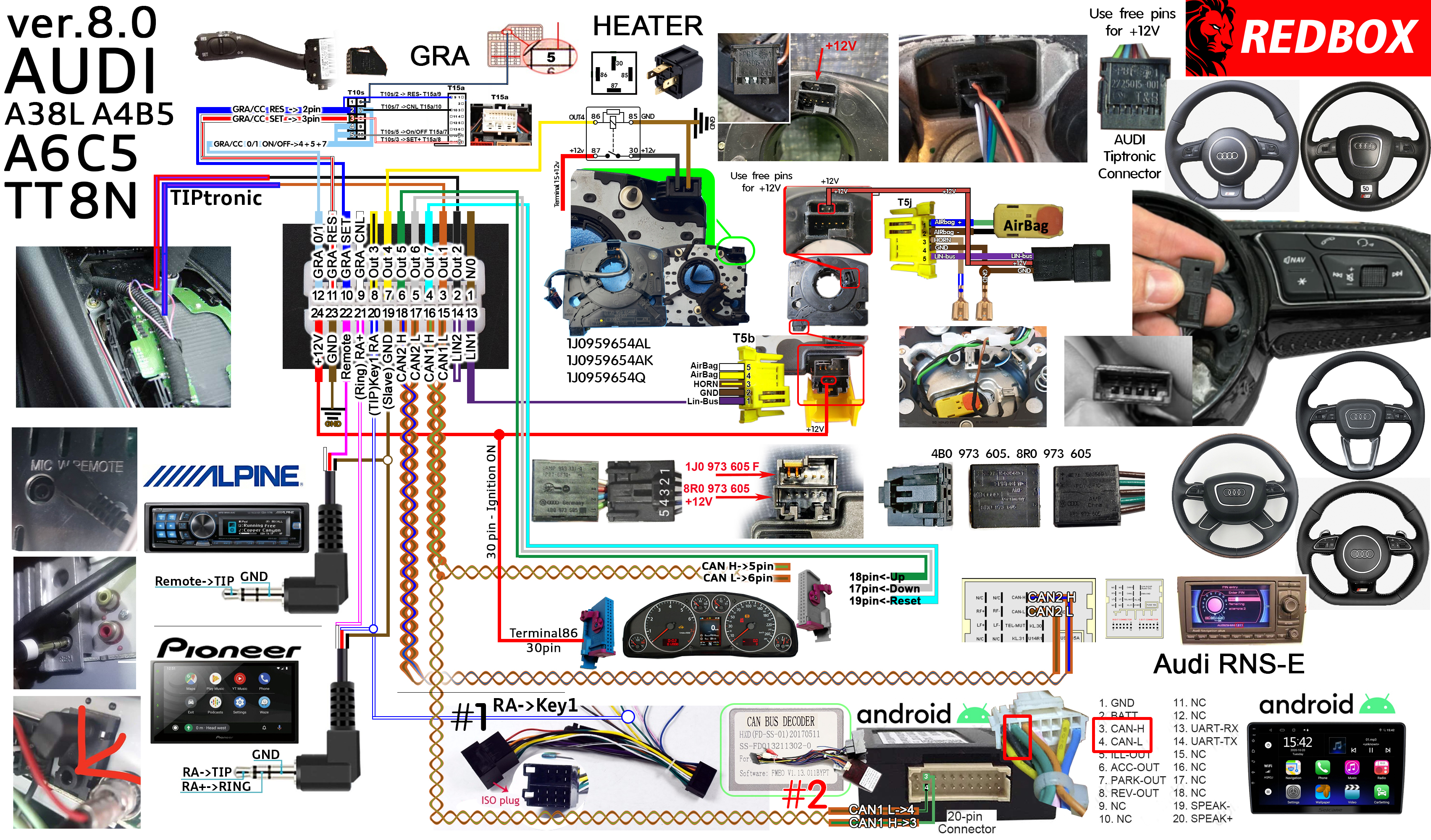

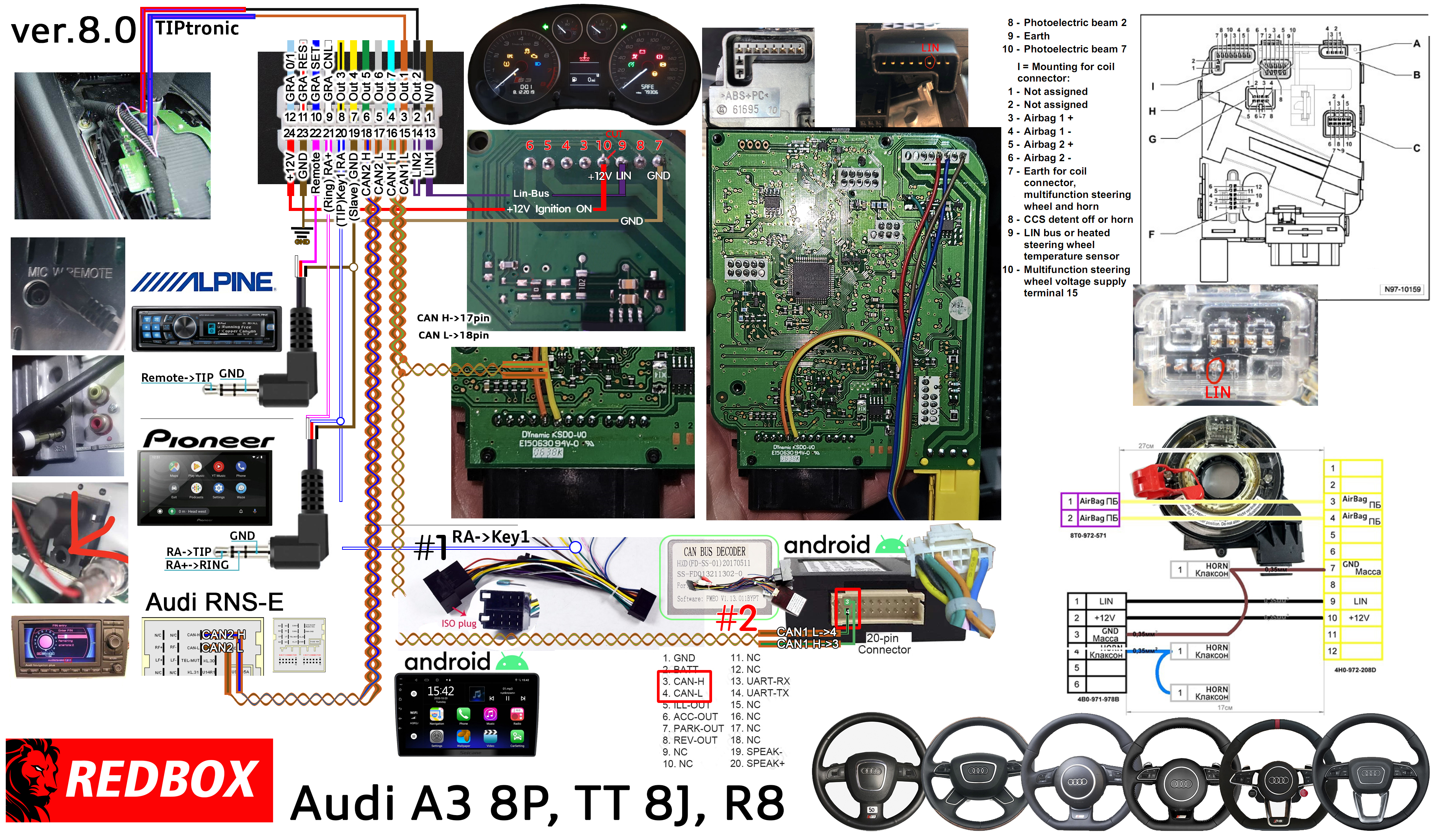

PINout AUDI A3 8L, A4 B5, A6 C5.
ESP,
3dMFD / OEM FIS
RNS-E, Android Radio, Pioneer, Alpine, Kenwood
VW, SEAT, SKODA
ESP, OEM FIS
Golf 7/Golf 8 MFSW
RNS-E, Android Radio, Pioneer, Alpine, Kenwood		 VW, SEAT, SKODA.
NO ESP, OEM FIS
Golf 7/Golf 8 MFSW
RNS-E, Android Radio, Pioneer, Alpine, Kenwood
  ver 7.5
PINout AUDI A3 8L, A4 B5, A6 C5.
ESP,
3dMFD / OEM FIS
RNS-E, Android Radio, Pioneer, Alpine, Kenwood

VW, SEAT, SKODA
ESP, OEM FIS
Golf 7/Golf 8 MFSW
RNS-E, Android Radio, Pioneer, Alpine, Kenwood		 VW, SEAT, SKODA
ESP, OEM FIS
Golf 7/Golf 8 MFSW
RNS-E, Android Radio, Pioneer, Alpine, Kenwood

  ver 5.0 / 5.1


Description / Описание SEAT Ibiza 6L
NO ESP, OEM FIS
Golf 7/Golf 8 MFSW


VW SEAT SKODA
NO ESP, 3dMFD
Golf 7/Golf 8 MFSW		 VW SEAT SKODA
ESP, 3dMFD
Golf 7/Golf 8 MFSW
VW SEAT SKODA
NO ESP, OEM FIS
Golf 7/Golf 8 MFSW
 		 VW SEAT SKODA
ESP, OEM FIS
Golf 7/Golf 8 MFSW

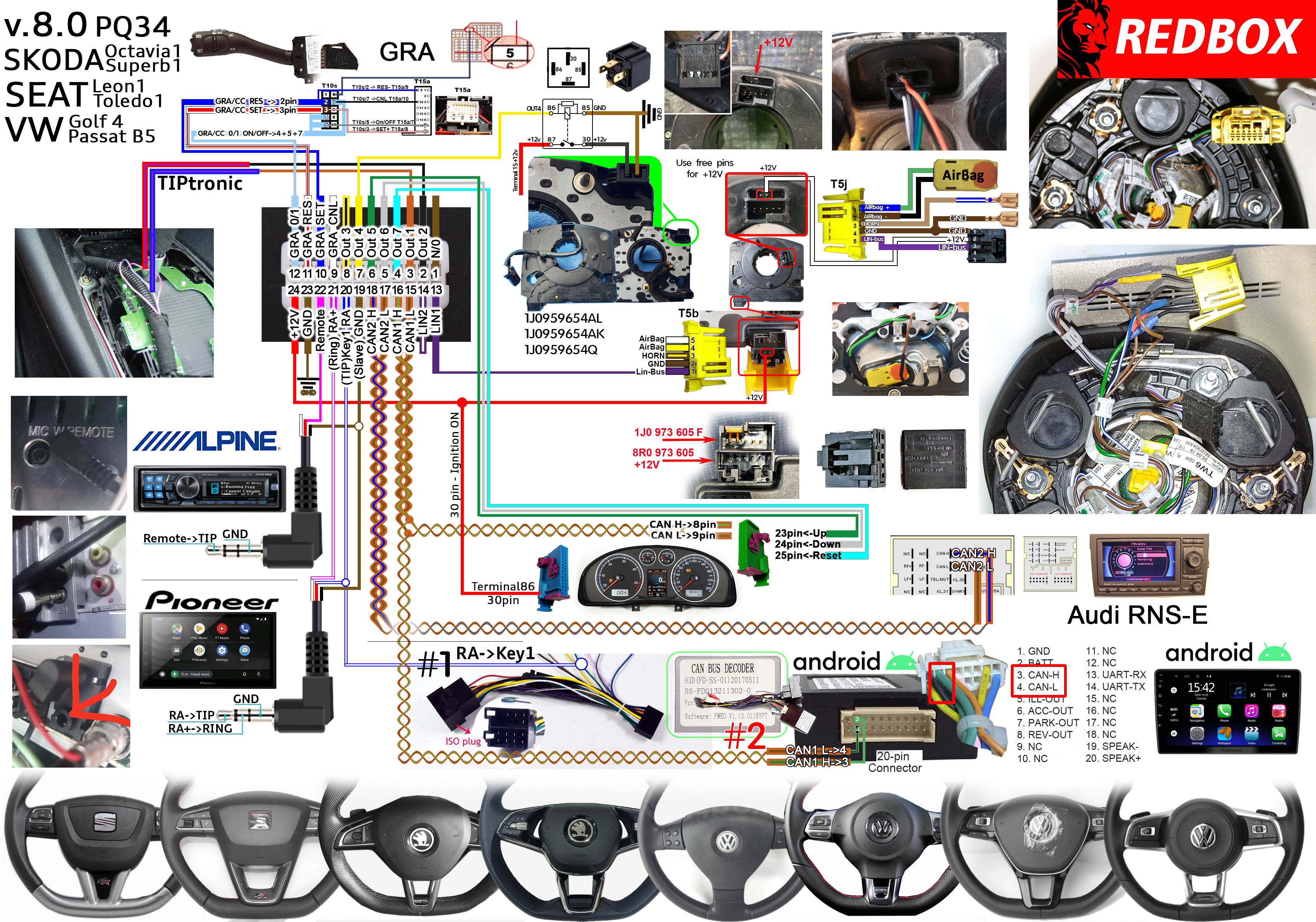

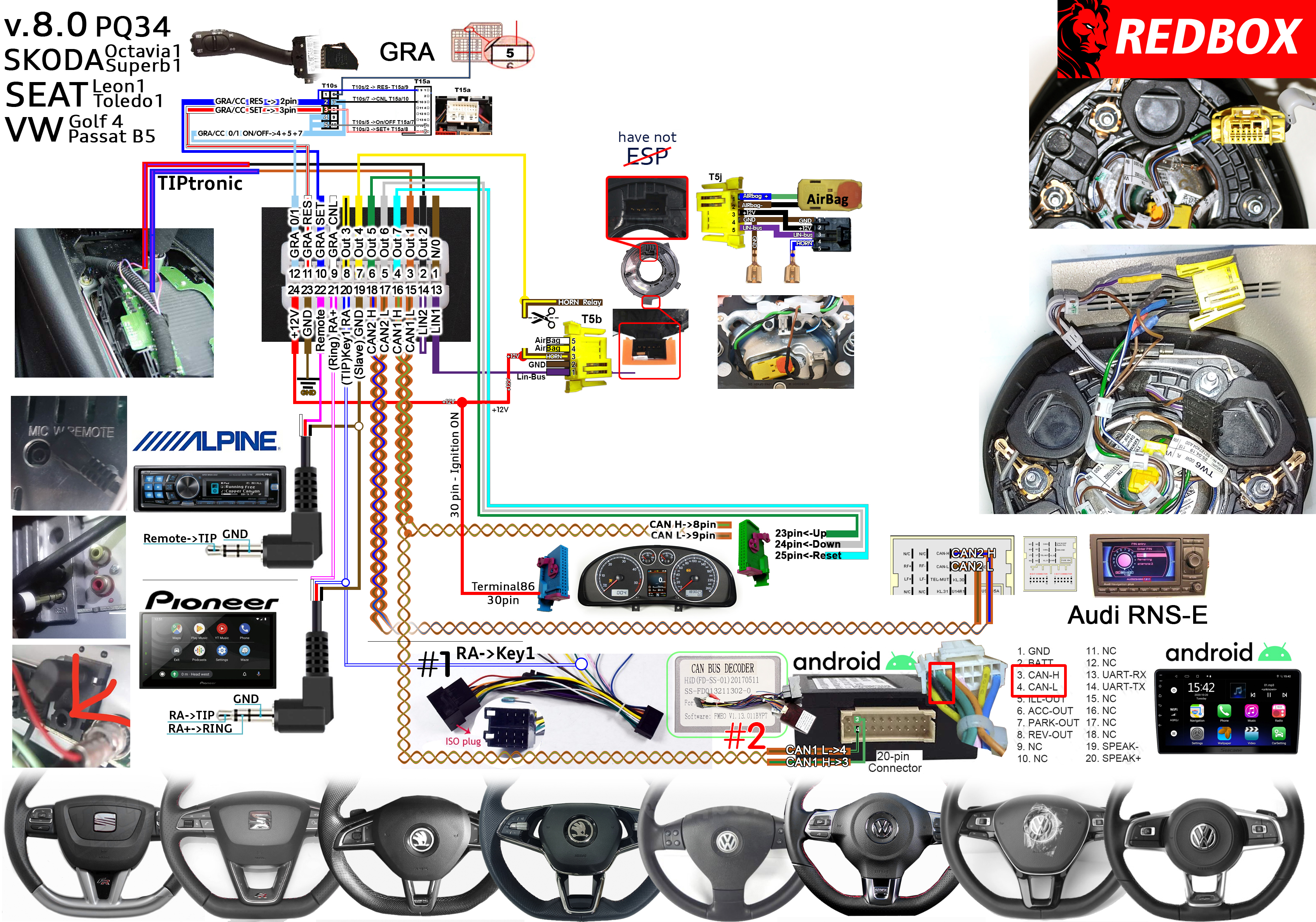

VW Polo 9N
NO ESP, OEM FIS
Golf 7/Golf 8 MFSW

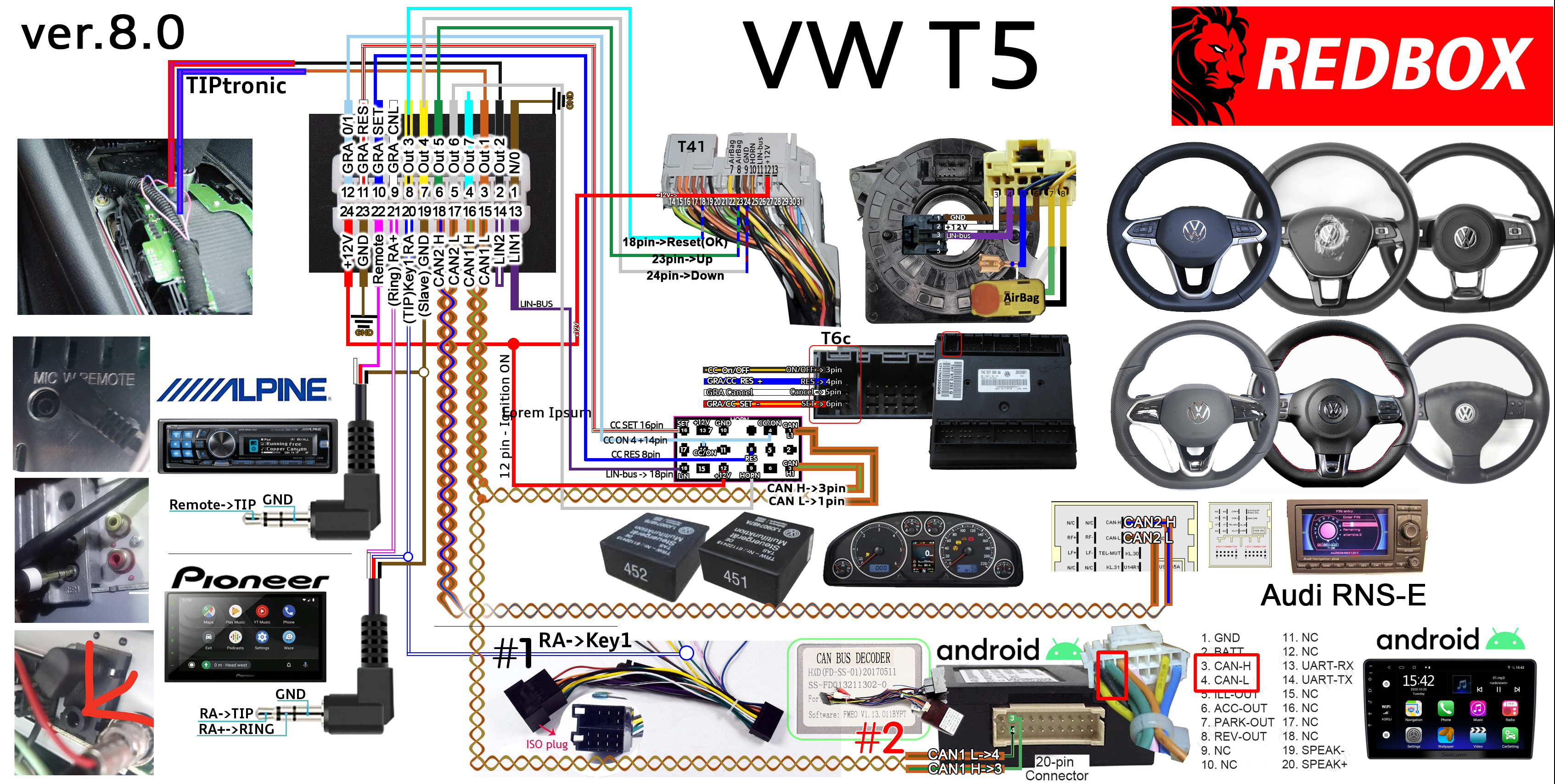

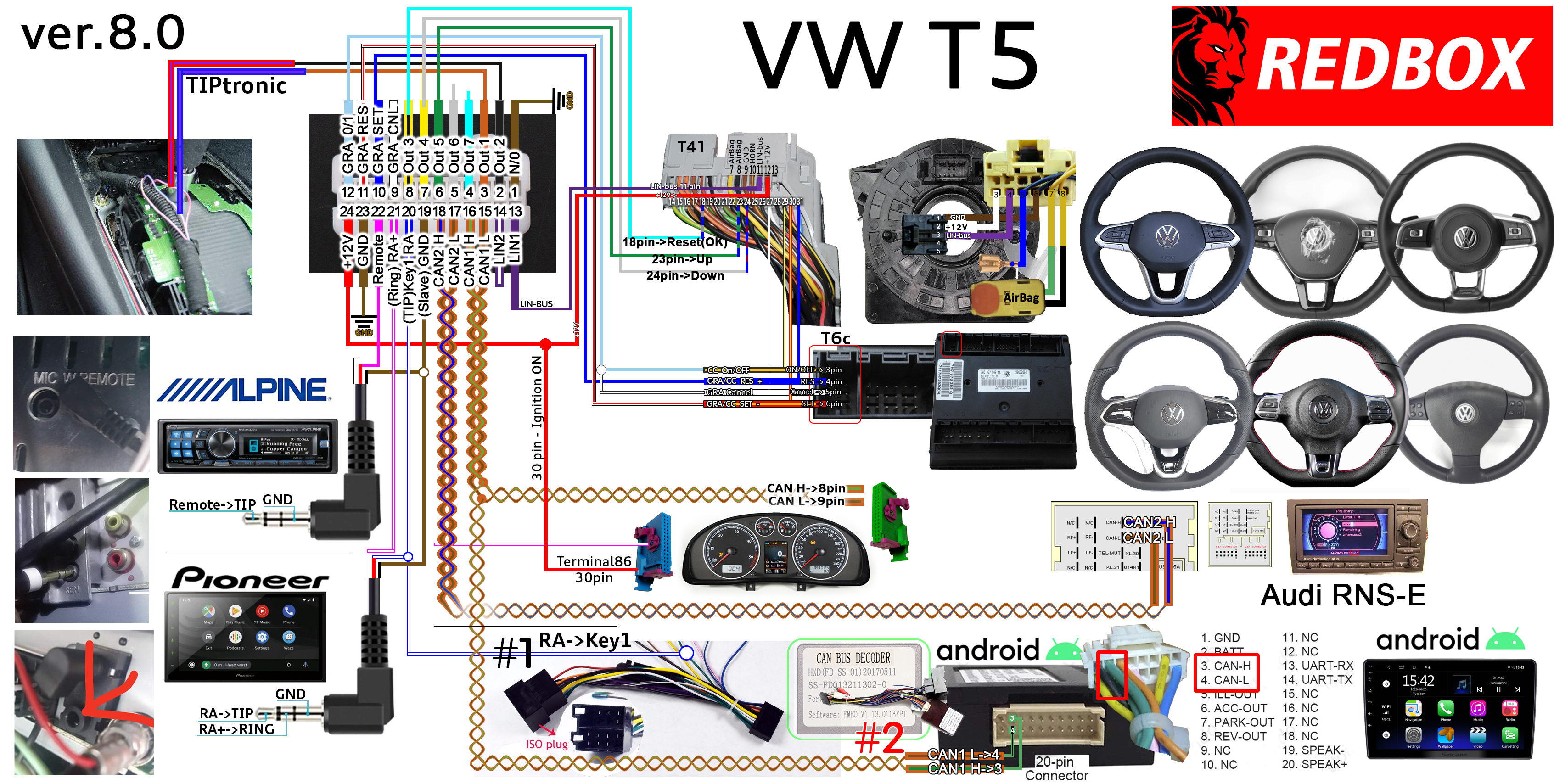

 		 VW T5
NO ESP, OEM FIS
Golf 7/Golf 8 MFSW
VW Passat B5 MFSW
NO ESP, OEM FIS		 VW Passat B5 MFSW
NO ESP, OEM FIS
Relay 451/452
AUDI
ESP, 3dMFD
 		 AUDI
ESP, OEM FIS

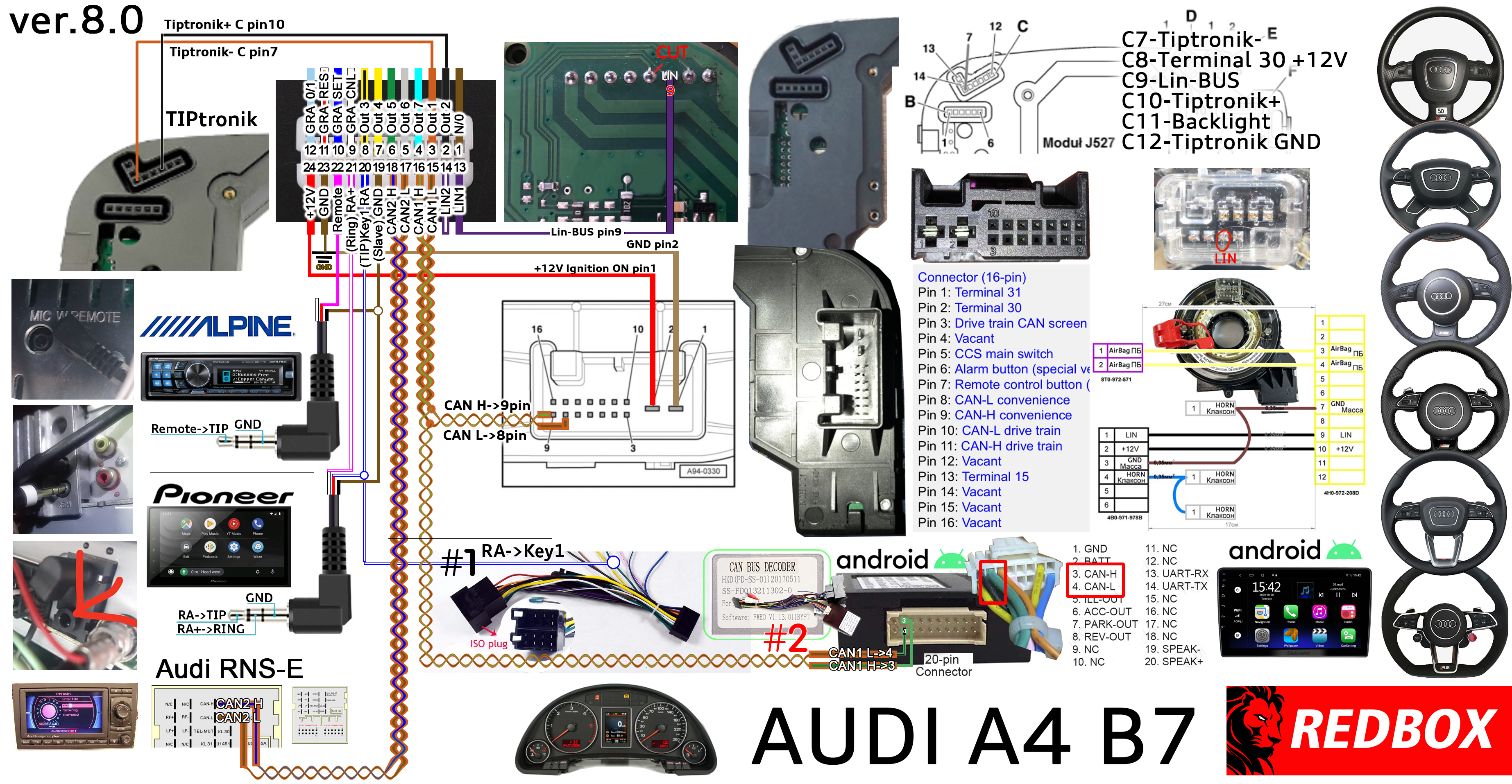

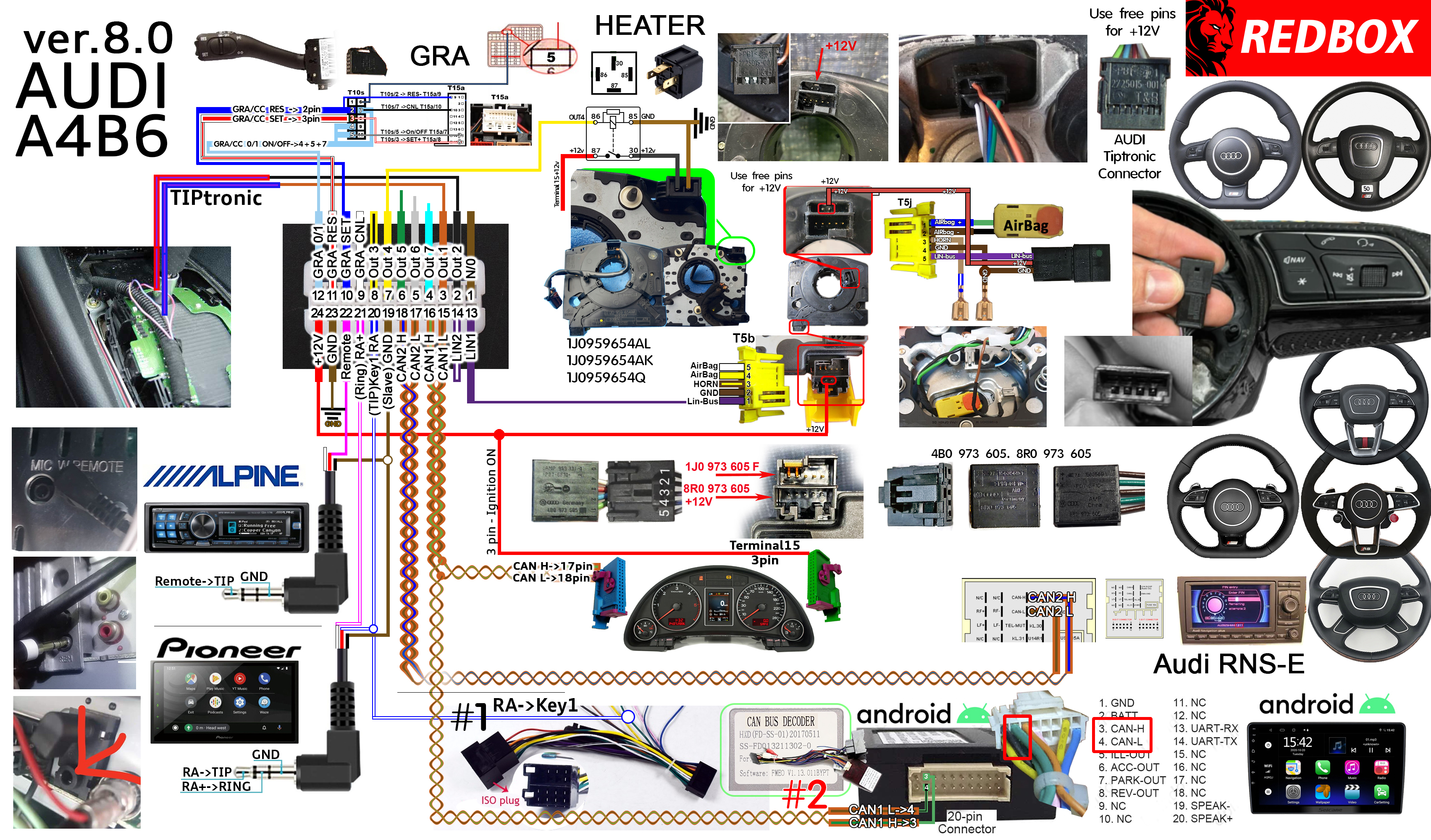

AUDI A4 B6 OEM FIS / 3dMFD		 AUDI A4 B7 OEM FIS / 3dMFD

  ver 3.0


AUDI A4 B6
RNS-E
OEM FIS		 AUDI A4 B7
RNS-E
OEM FIS
AUDI
RNS-E
OEM FIS		 AUDI
RNS-E
3dMFD		 AUDI DUBLE relay 452
RNS-E
OEM FIS
VW SEAT SKODA
ESP, 3dMFD
GOLF6 MFSW		 VW SEAT SKODA
ESP, OEM FIS
GOLF6 MFSW		 SEAT
ESP, OEM FIS
3dMFD
VW SEAT SKODA
ESP, 3dMFD
GRA  GOLF7 MFSW		 VW SEAT SKODA
NO ESP, 3dMFD
GRA  GOLF7 MFSW		 VW SEAT SKODA
ESP, OEM FIS
GRA  GOLF7 MFSW
HEATING
VW SEAT SKODA
ESP, OEM FIS
GRA  GOLF7 MFSW		 VW SEAT SKODA
NO ESP, OEM FIS
GRA  GOLF7 MFSW		 VW DUBLE relay 451/452
ESP, 3dMFD
GRA  GOLF7 MFSW
VW T5
3dMFD
GOLF6 MFSW		 VW T5
OEM FIS
GOLF6 MFSW		 VW Polo 9N
SEAT Ibiza 6L
ESP, 3dMFD
GOLF6 MFSW
VW T5
3dMFD
GOLF7 MFSW
GRA		 VW T5
3dMFD, Android radio
GOLF7 MFSW
GRA		 VW Polo 9N
SEAT Ibiza 6L
ESP, OEM FIS
GOLF6 MFSW
VW T5
3dMFD
GOLF6 MFSW
RNS-510		 VW T5
OEM FIS
GOLF6 MFSW
RNS-510		 VW T5
OEM FIS
GOLF6 MFSW
LIN-bus HORN
RNS-510
  ver 2.0
AUDI
RNS-E
OEM FIS		 VW SEAT SKODA
ESP, OEM FIS
GRA  GOLF7 MFSW		 VW SEAT SKODA
NO ESP, OEM FIS
GRA  GOLF7 MFSW

VW SEAT SKODA
ESP, OEM FIS
GRA  GOLF6 MFSW		 VW SEAT SKODA
NO ESP, OEM FIS
GRA  GOLF6 MFSW
